Mechanical design
A crystal that is held, not squeezed.
The mechanical design incorporates a pogo-pin connector and fine regulation of o-ring pressure, which minimizes mechanical stress on the quartz crystal — thereby reducing frequency drift and additional noise.

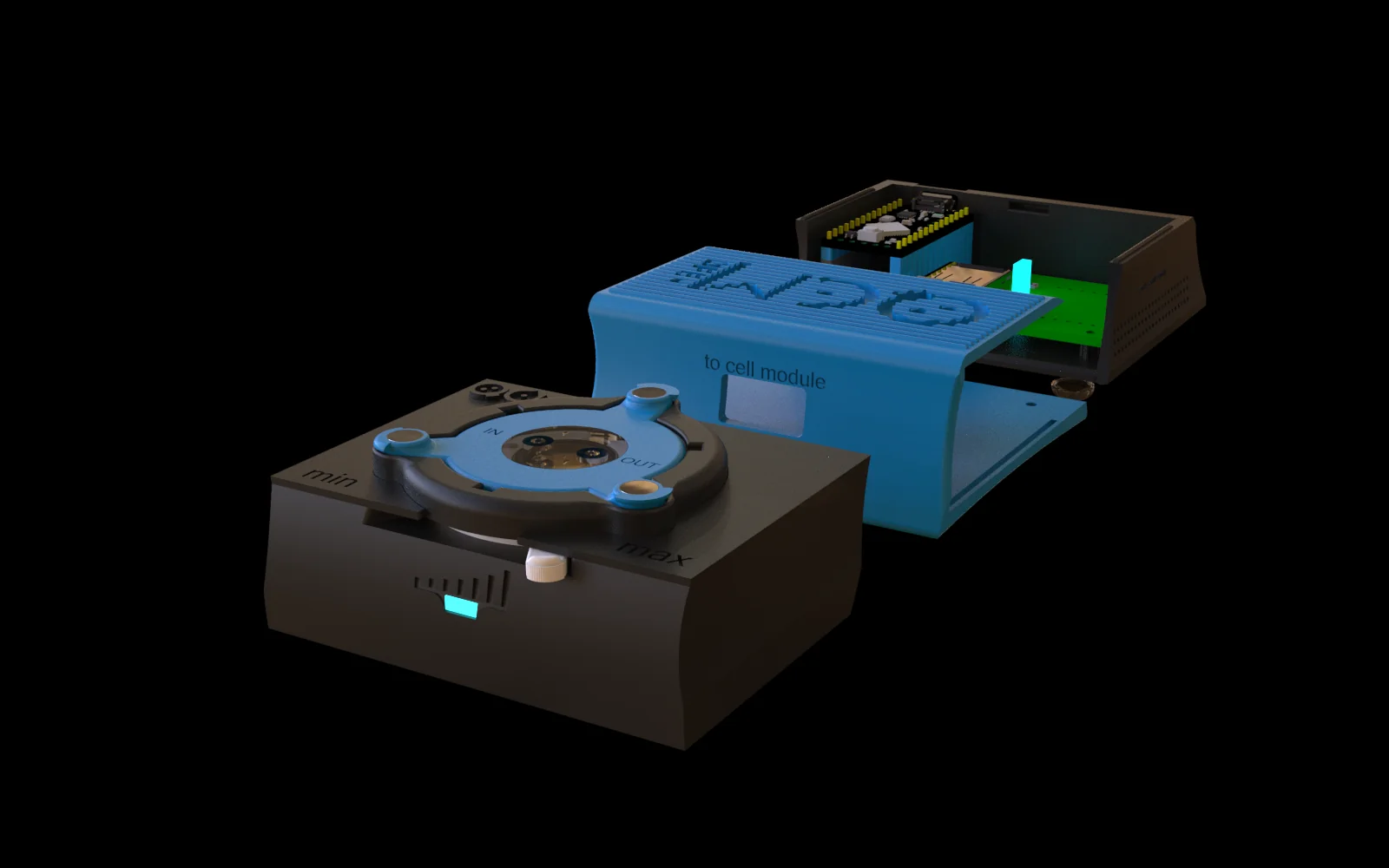

- In this view

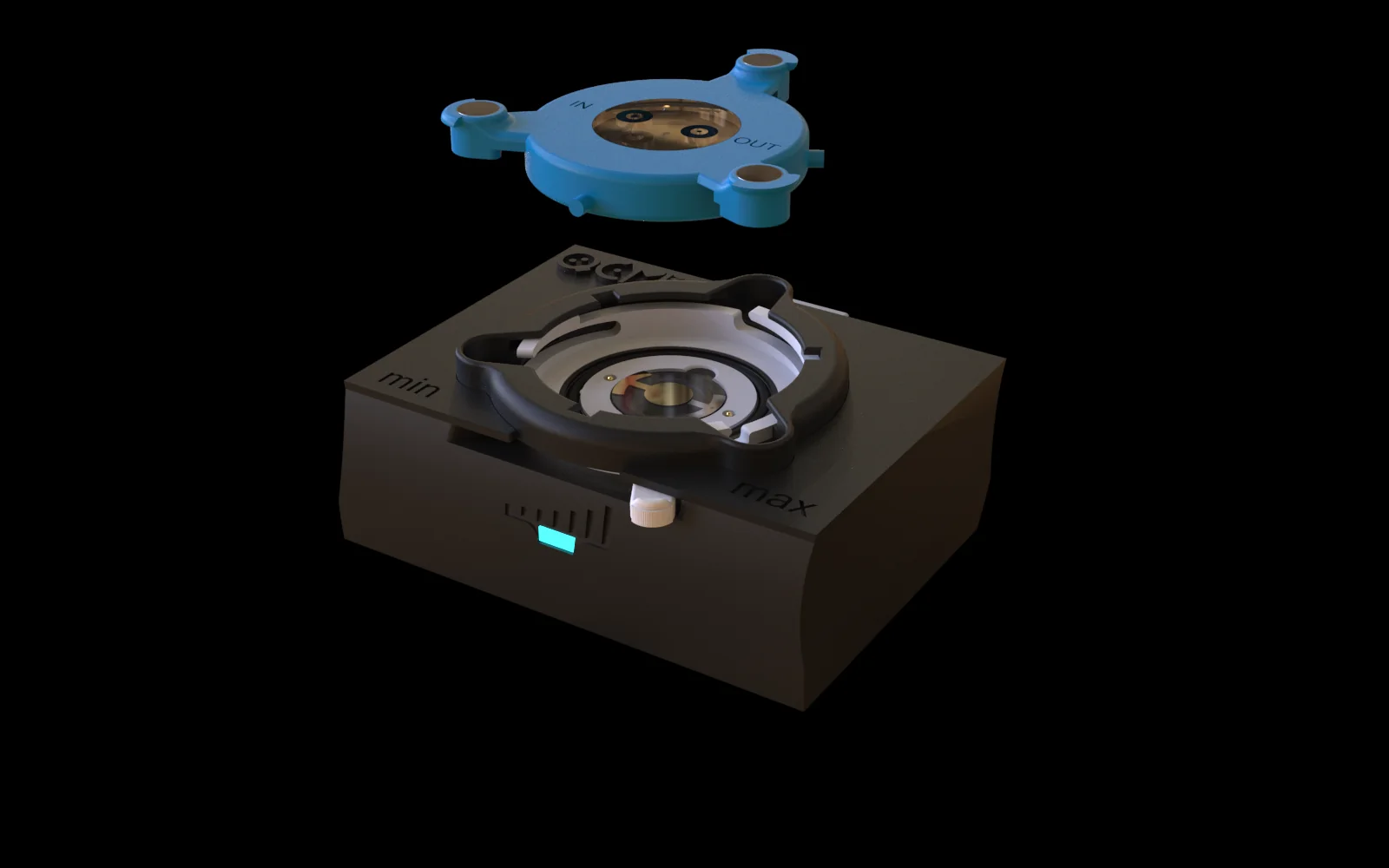

- Fluidic top cover and window
- Lever for the O-ring pressure
- Sensor module with pogo pins and temperature sensor
- Main electronics with the Teensy
- Case in nylon PA2200
Sensor module
Built around the crystal.
- 01Pogo-pin connector for quartz sensor electrical contacts
- 02Fine regulation of o-ring pressure
- 03Micrometric height adjustment for the measurement chamber
- 04Magnetic backreaction on sealing
- 05Materials compatible with most substances
- 06Hosts quartz sensors at different frequencies — typically 5 MHz and 10 MHz
- 07Integrated temperature sensor
