← openQCM NEXTSheet 06 of 06Gallery
Sheet 06 · Gallery

openQCM NEXTopenQCM NEXT, in plates.

Studio renders, the instrument in the lab, its inside and its modules. Click a plate to see it full screen.

Buy in the store Request a quote Back to NEXT
Instrument
openQCM NEXT
Sheet
06 / 06
Title
Gallery
Drawn
openQCM · Pompeii

Contact sheetEvery plate at a glance

Chapter 01

On the bench

Studio renders of the bridge.

  1. 01From the front: the fluidic module in its PTFE slot, at the centre of the heat sink

  2. 02In profile, with the heat sink tilted

  3. 03Three-quarter view of the instrument

  4. 04The top of the bridge, with the openQCM logo

  5. 05The heat sink and the fluidic module, face on

Chapter 02

In the lab

Where the instrument lives.

  1. 06openQCM NEXT on a laboratory bench

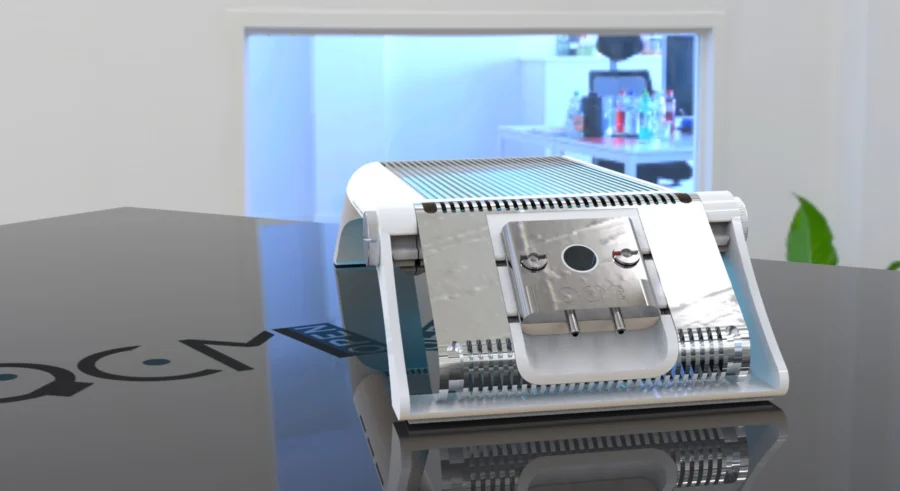

  2. 07On the desk, facing the user

  3. 08Side light on the bridge

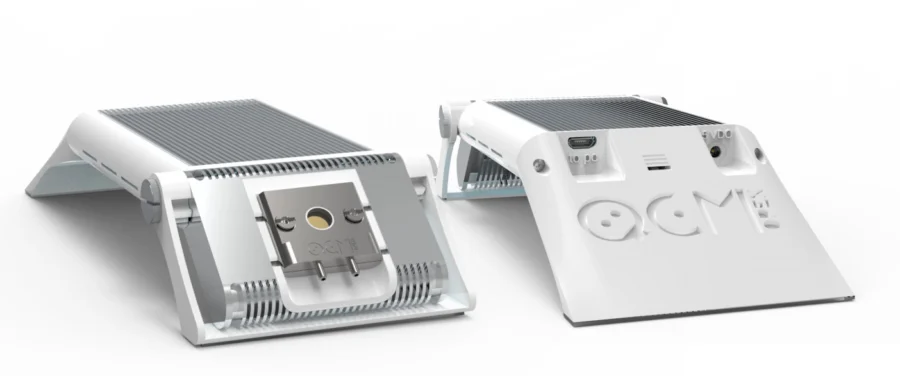

  4. 09Two NEXT side by side

Chapter 03

Inside

What the bridge holds.

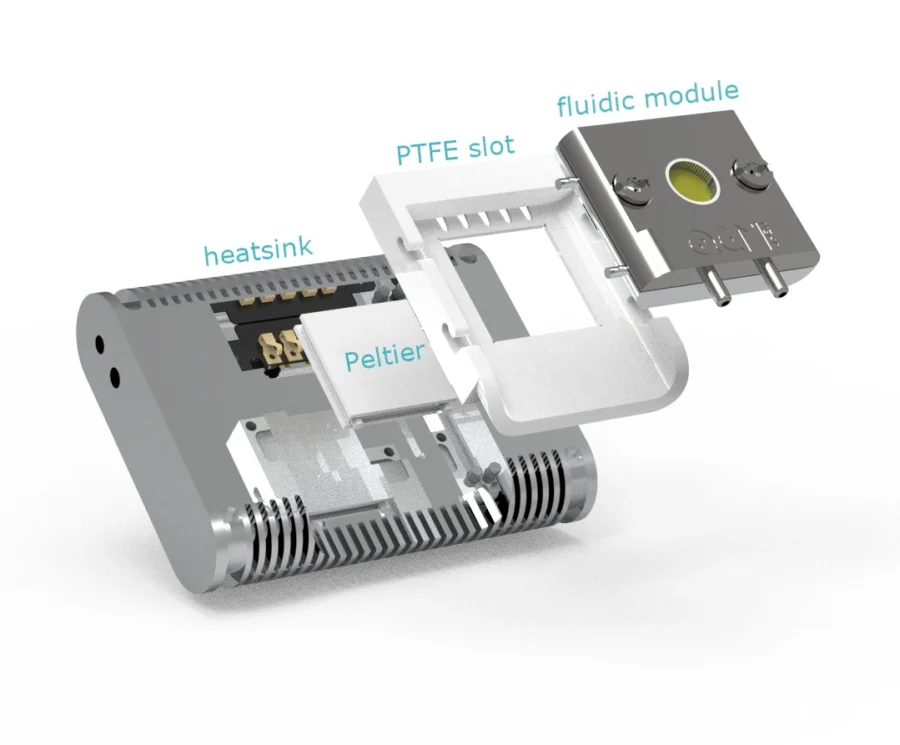

  1. 10Exploded: heat sink, Peltier element, PTFE slot and fluidic module

  2. 11X-ray view: the electronics inside the bridge

  3. 12The main board: network analyser shield and Teensy 4.0

  4. 13Thermal map of the heat sink

Chapter 04

Modules

One slot, several experiments.

  1. 14The standard fluidic module, opened, with a 14 mm crystal

  2. 15The fluidic module, closed, with its two fluid ports

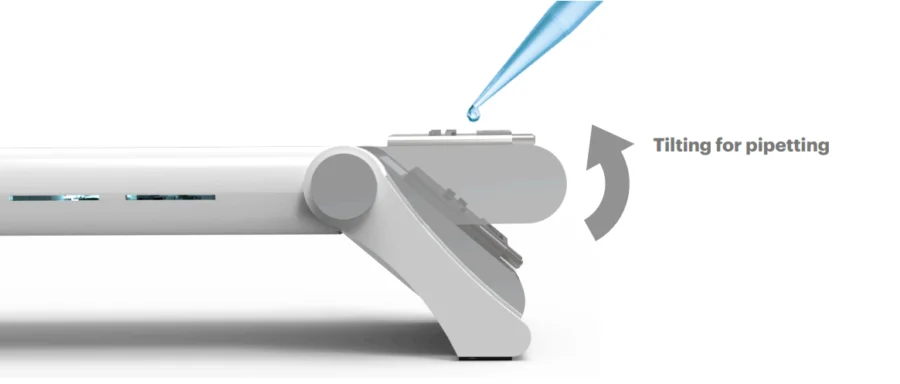

  3. 16Tilting for pipetting: the heat sink turns horizontal

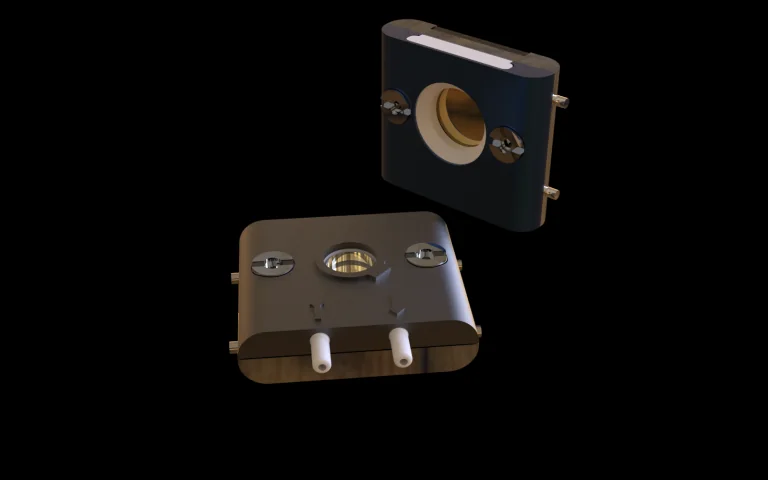

  4. 17Optical module and pipetting module
