openQCM Q-1openQCM Q-1, in plates.
Studio renders, the two modules, the sealing mechanism and the boards. Click a plate to see it full screen.
- Instrument
- openQCM Q-1
- Sheet
- 06 / 06
- Title
- Gallery
- Drawn
- openQCM · Pompeii
Contact sheetEvery plate at a glance
On the bench
The two parts of the Q-1.
-

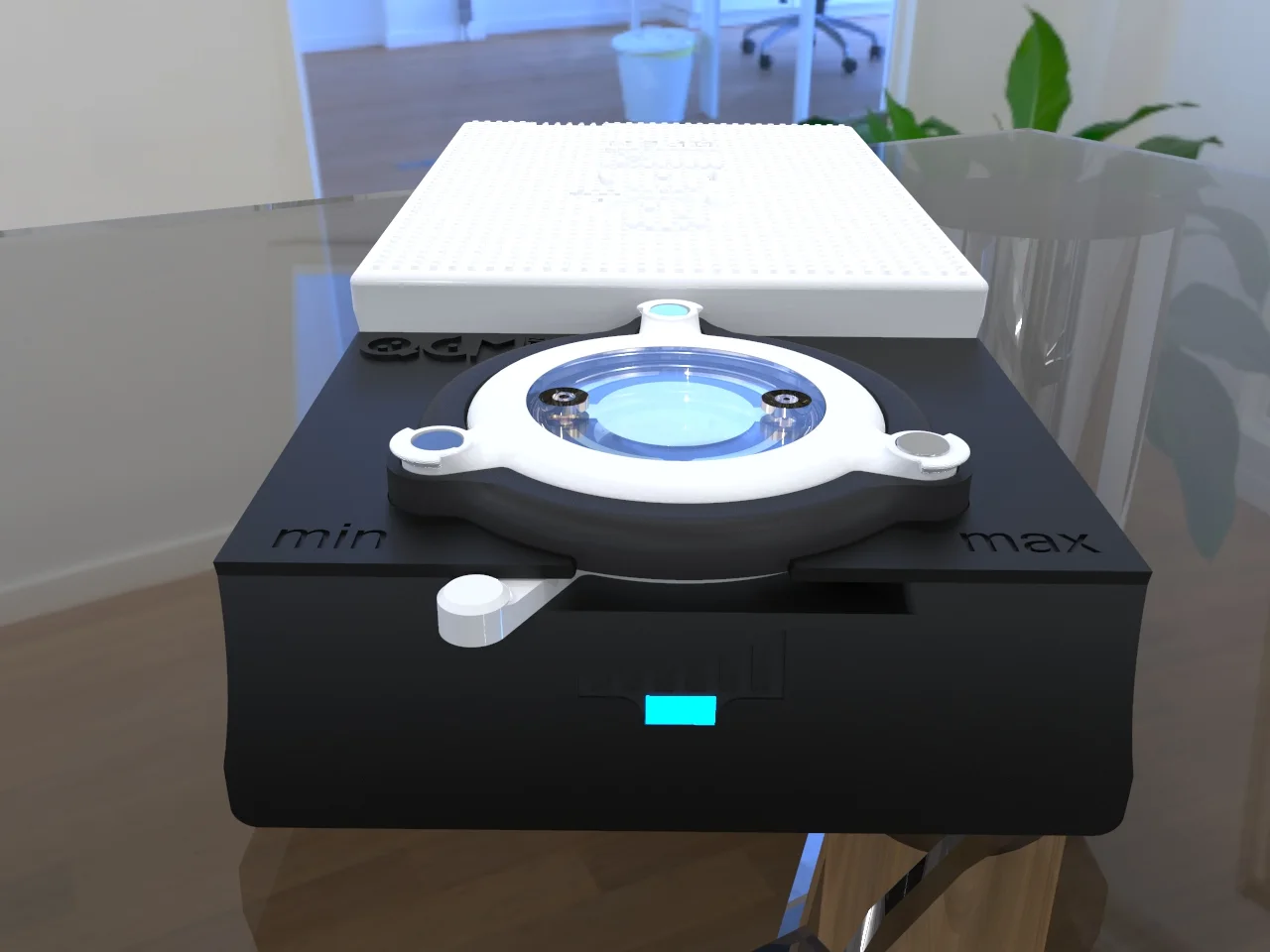

01openQCM Q-1: the sensor module in front of the main unit
-

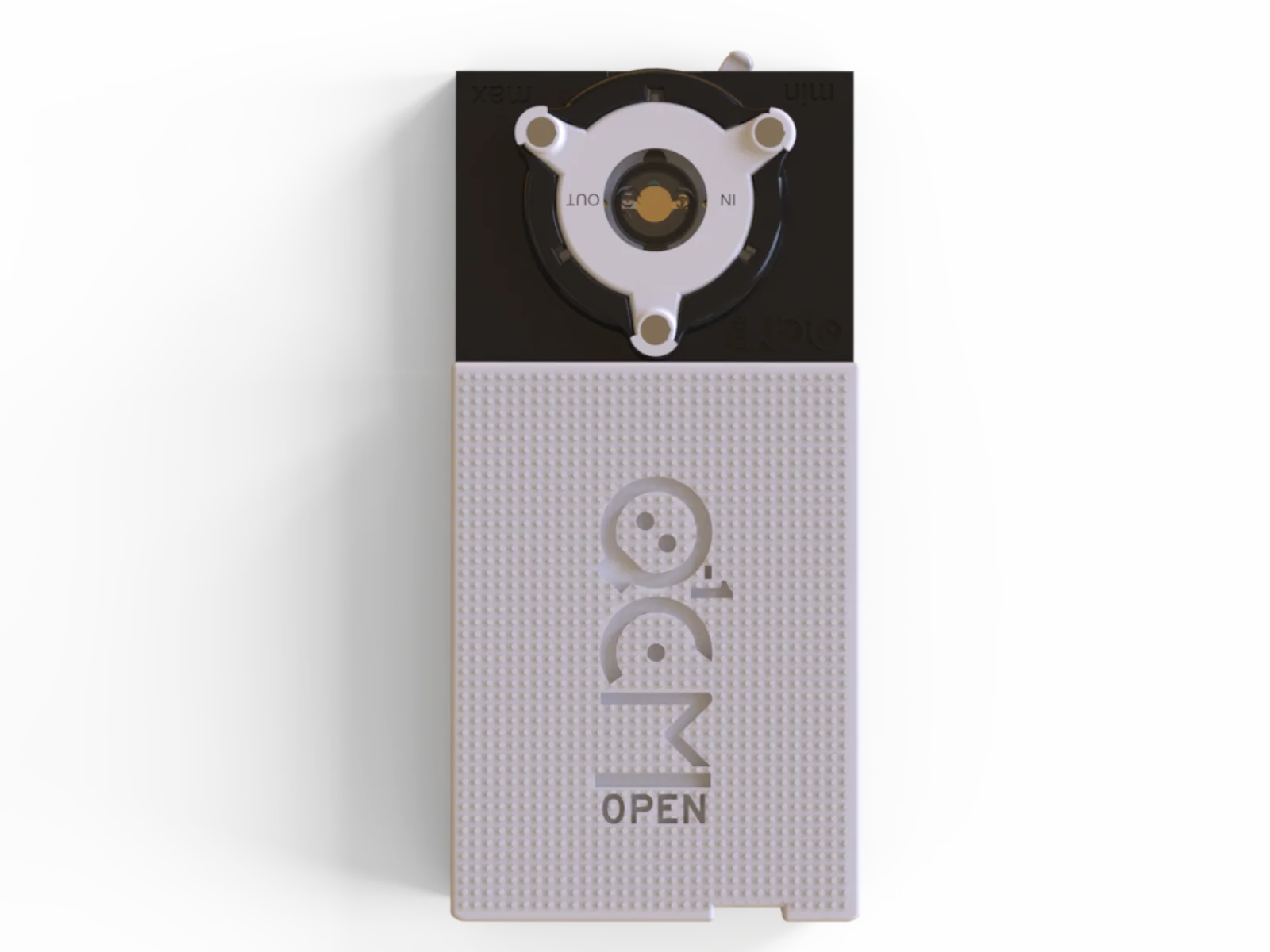

02From above: sensor module and nylon main unit
-
03Modular: the sensor module unplugs from the main unit
In the lab
On a desk.
-

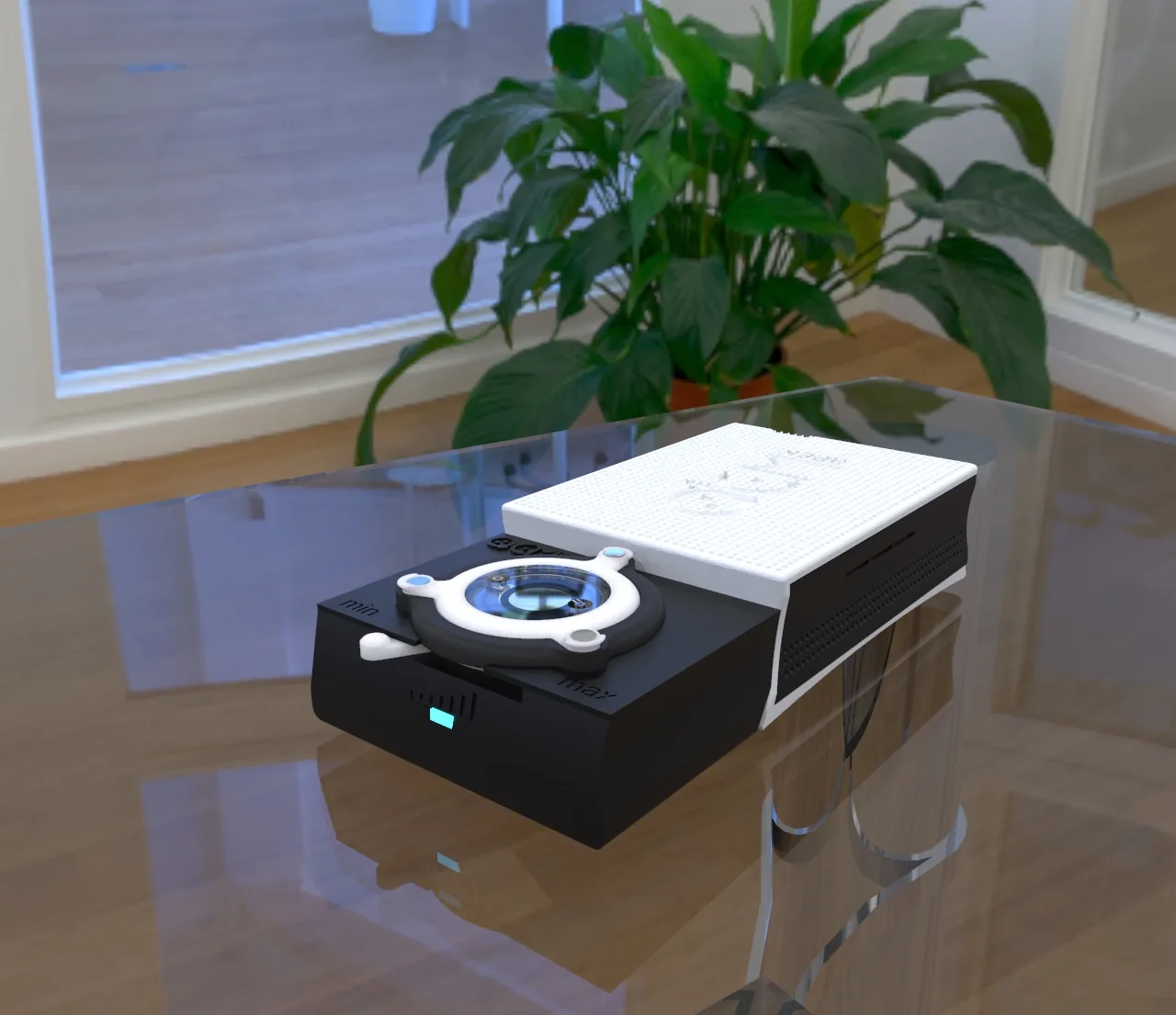

04The Q-1 on a laboratory desk
-

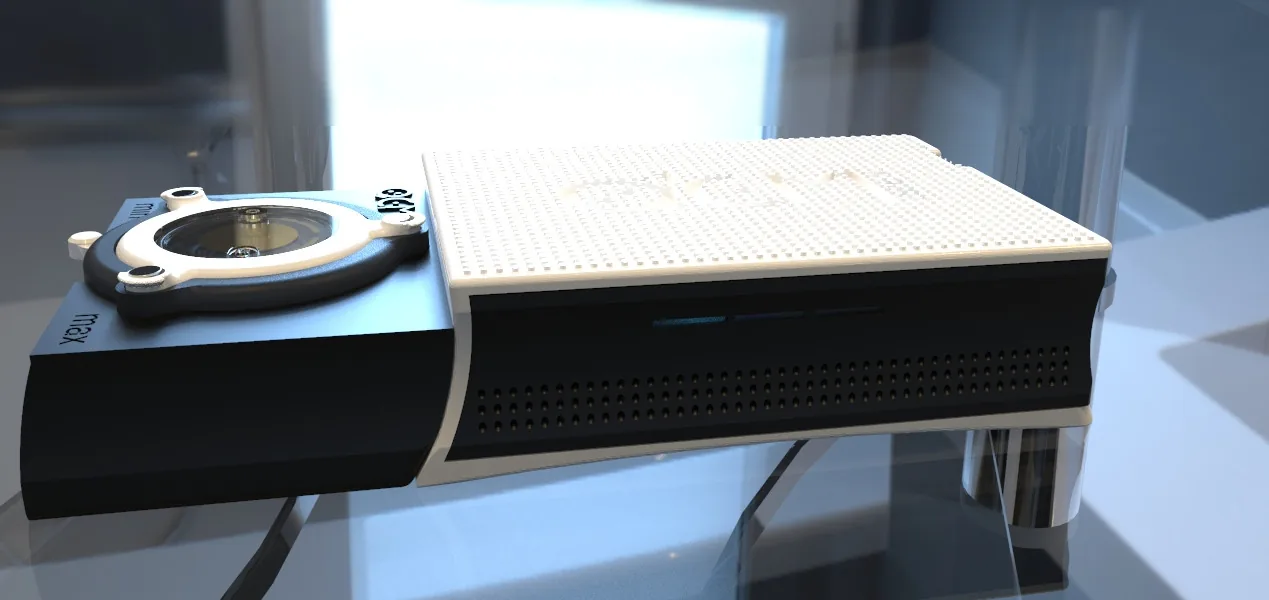

05Side view
Inside
Exploded views, sections, boards.
-
06Exploded: fluidic window, O-rings, crystal, proximity board, Teensy and main electronics
-

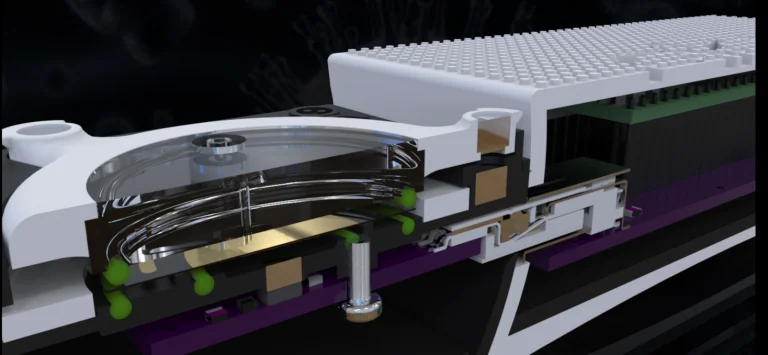

07Section: the crystal between the fluidic cover and the pogo pins
-
08Proximity board: pogo pins, I²C temperature sensor, USB 3.0 connector
-
09The network analyser shield with the Teensy
-

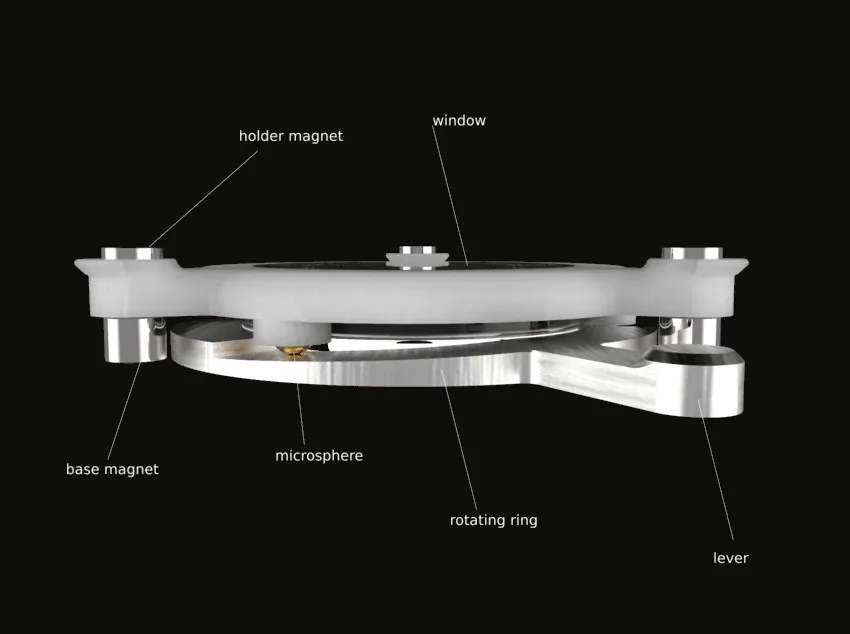

10Sealing mechanism: lever, rotating ring and magnets
Sensor module
The crystal seat and the electrochemistry module.
-

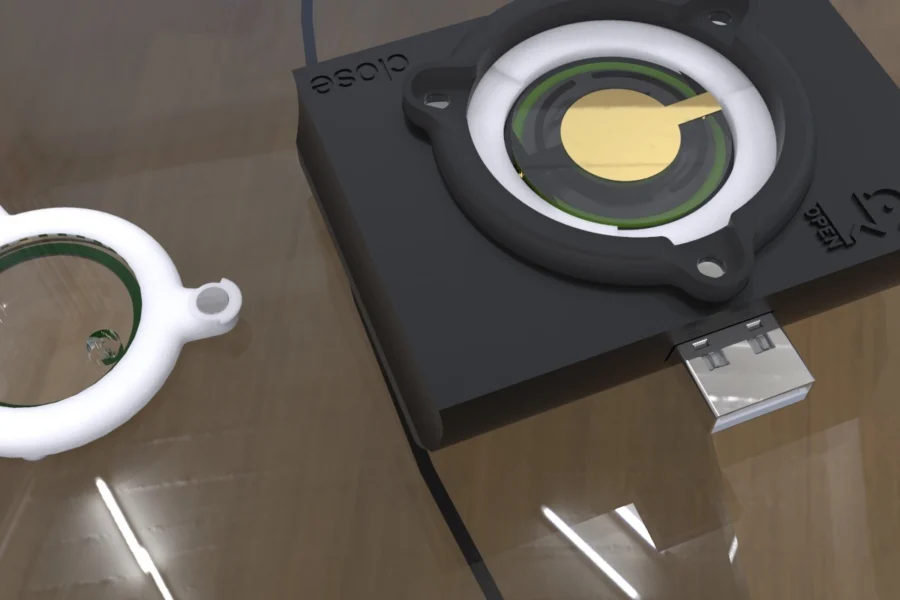

11The cell opened: the crystal on its seat
-

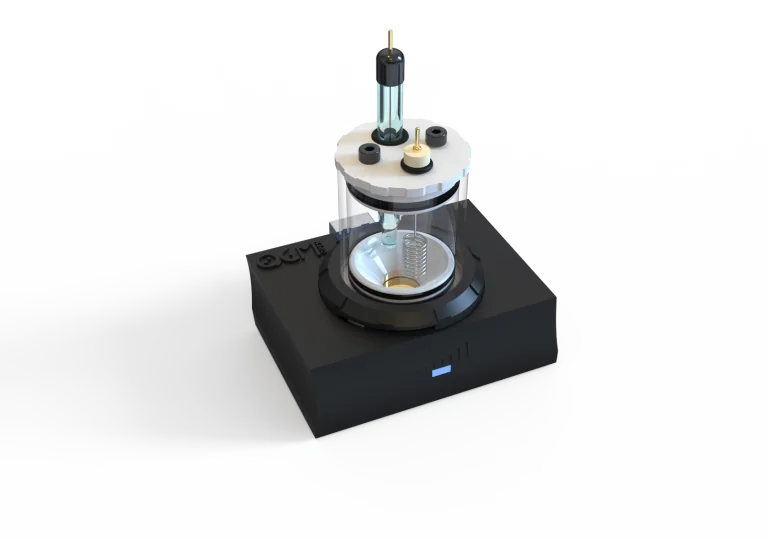

12The electrochemistry module for the Q-1
